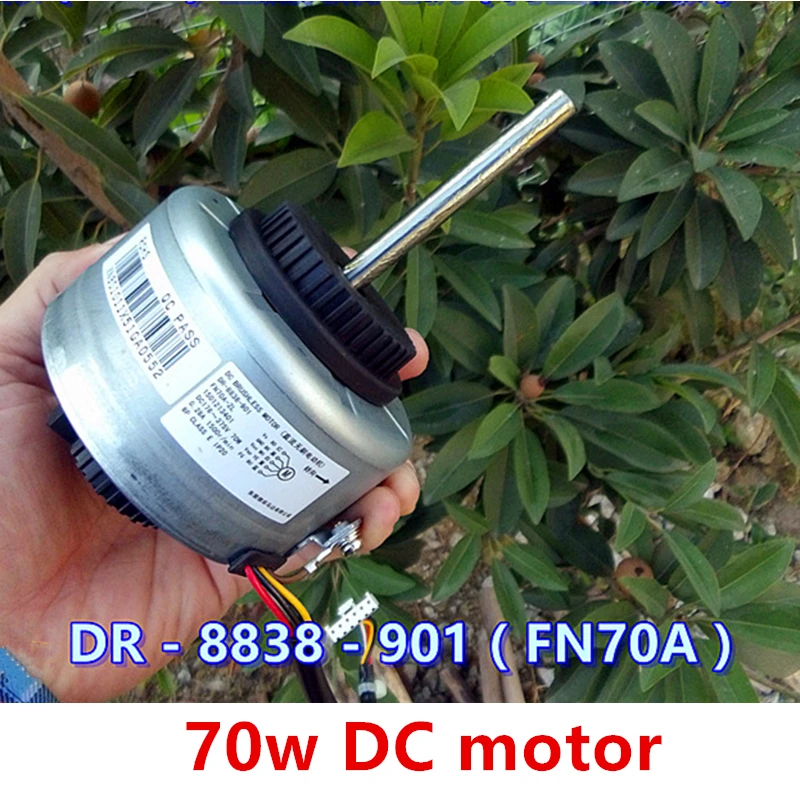

70W DC brushless motor built in drive air conditioning indoor unit fan motor FN70A

70W DC brushless motor built in drive air conditioning indoor unit fan motor FN70A
  • Продавецalkurn.net
  • Список ценUS $25.78piece
  • Продажная ценаUS $25.78piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,6 (402)

Oписание продукта

DIY, please buyers to have their own knowledge of the circuit, we can not provide technical support.

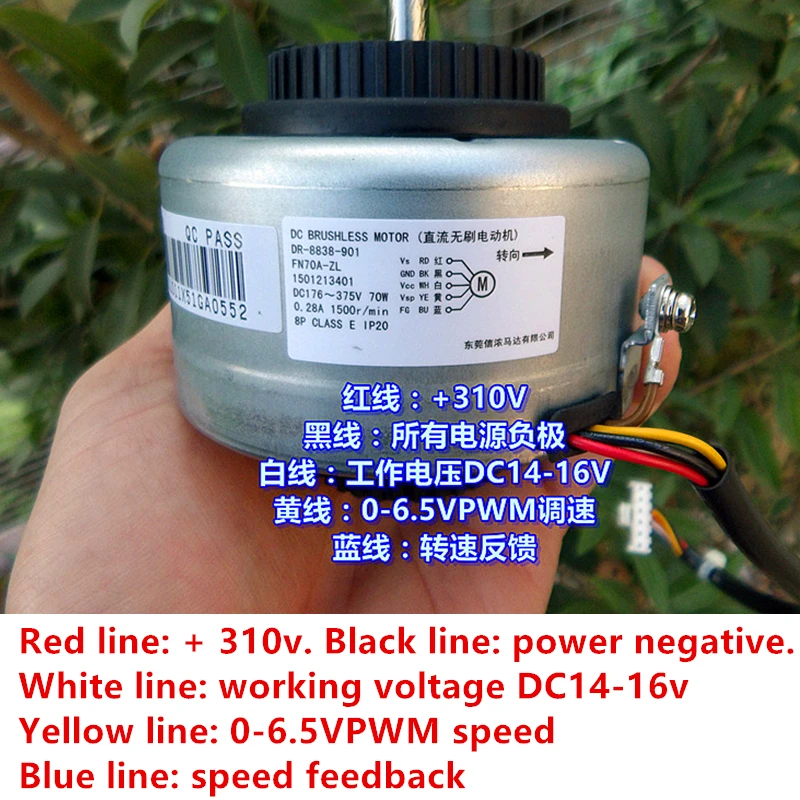

(VSV), drive voltage, DC + 310V (220V AC and then rectifier bridge is 310V DC, it is best to add a 100uf / 400V filter capacitor) This time the motor wide voltage DC176V-375V, that is, with AC AC110V- 220V rectifier can be used.

[GND] black line, all the power of the negative and connected together.

【Vcc】 white line, working voltage, DC14-16V

【Vsp】 yellow line, speed control, 0-6.5VPWM speed, the lower the voltage switch

The slower the slow, you can completely mediate

【FG】 blue line, speed feedback

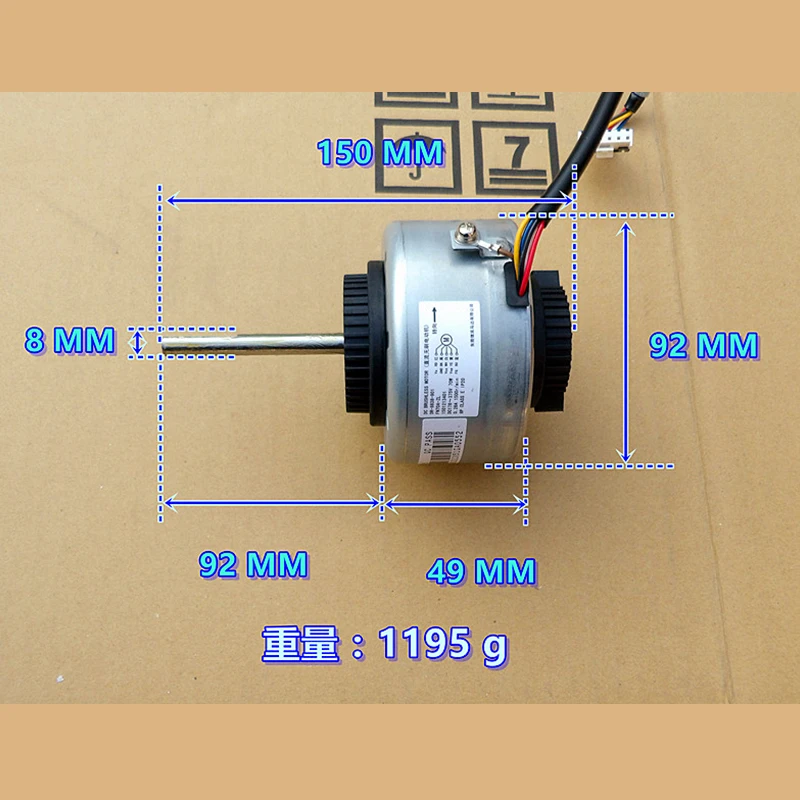

【Weight】 1195 g

[Speed]: 1500 RPM

[Turn]: CCW

[Line length]: 80 MM

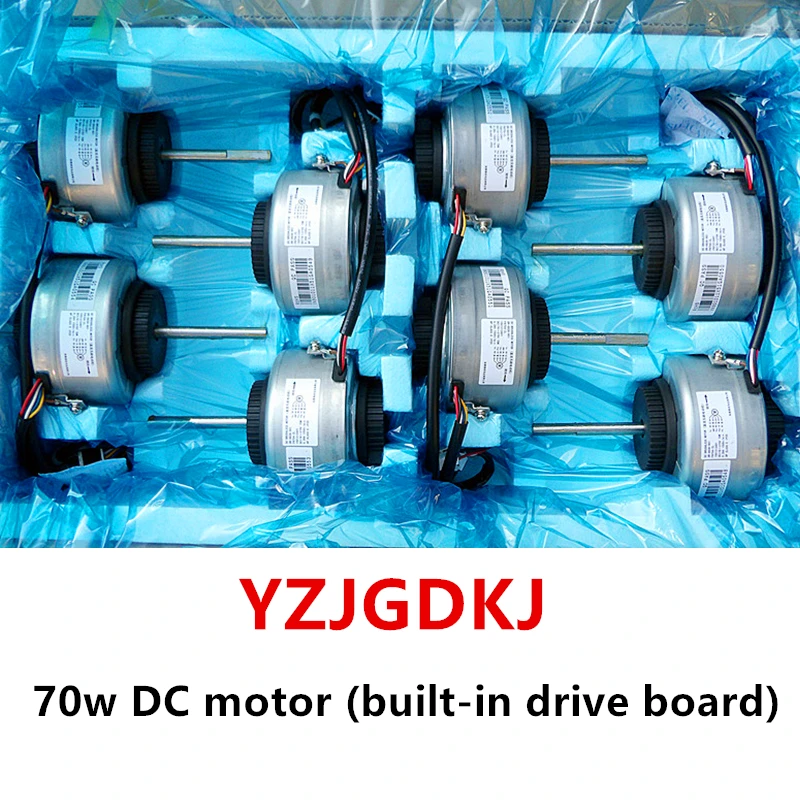

     New original letter of the brushless DC motor, air conditioning indoor fan motor, precision is very good, almost up and down around the shaft are no movement, the shaft are coated with rust-proof butter, we can see the Japanese work is really more serious. Comes with drive, front and rear ball bearings, almost no radial run, should be a very silent brushless motor.

   This kind of motor work to three sets of voltage, more trouble, it should be used in air conditioning, there are specialized corresponding circuit socket.
