Oписание продукта

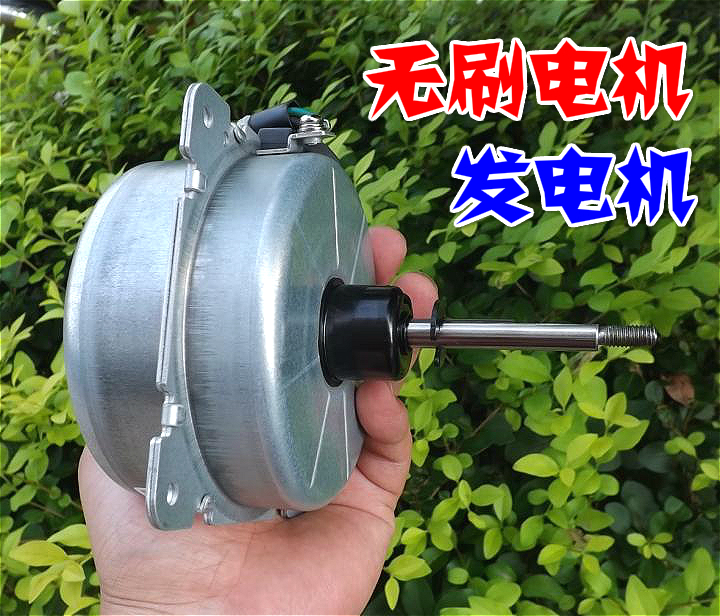

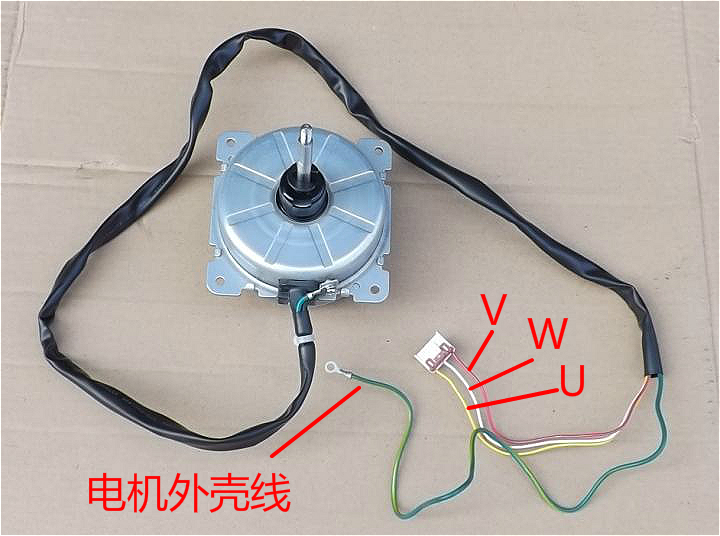

DC brushless motor, originally used for air conditioning outside the fan motor.

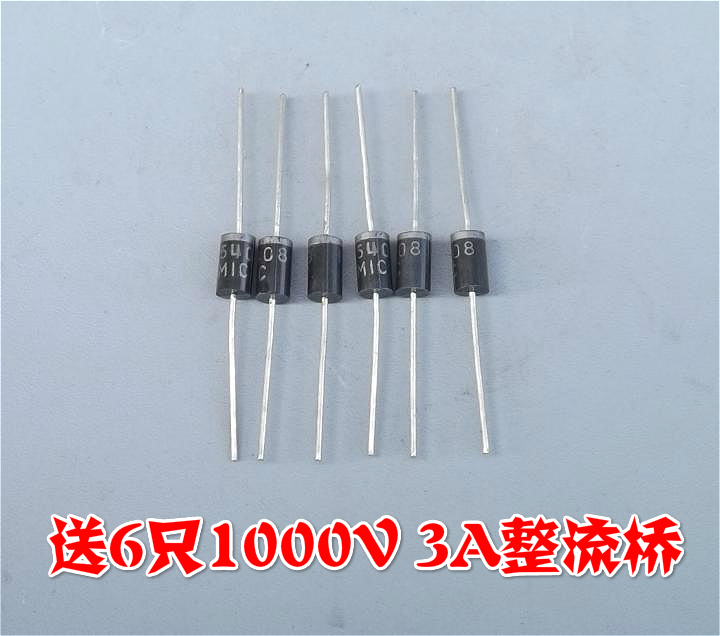

The motor is issued by the three-phase AC, after three-phase rectifier output DC

Do brushless motor parameters (is to drive to turn Oh!):

【Rated voltage】 DC310V (220V AC rectifier)

【Rated current】 0.13A

【Speed】 900 rev / min

【Rated power】 30W

  [Weight] 1.34kg

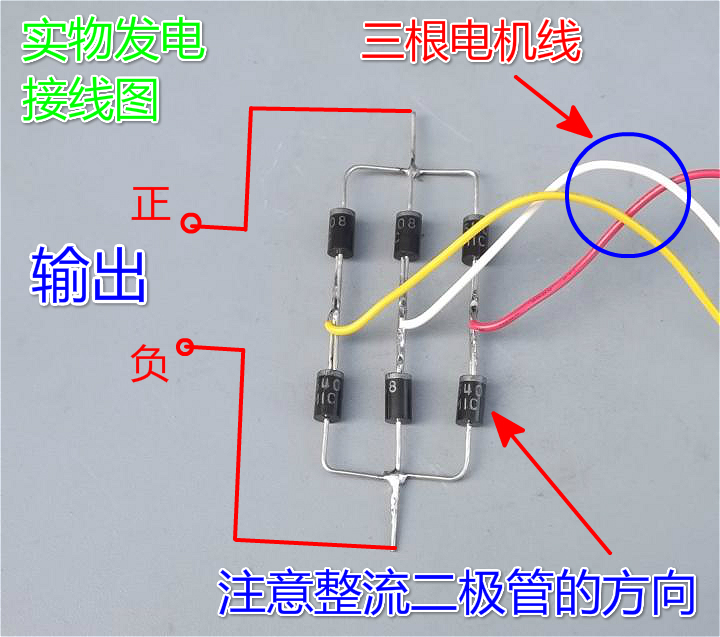

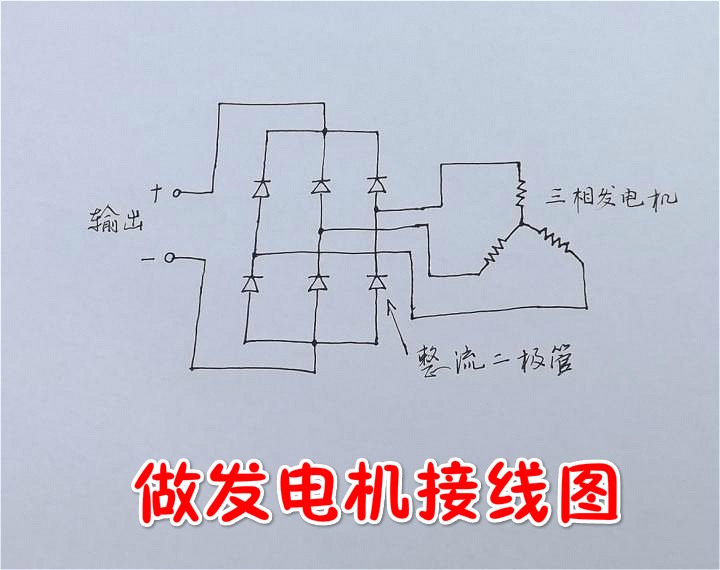

When making the generator reference data:

Per minute 96 rpm when the rectified output of no-load 12V DC

Approximately 192 rpm after the rectification of about 24V DC output

384 rpm per minute after the rectifier output of about 48V DC

960 rpm per minute after the rectifier output of about 120V DC

2400 rpm per minute after the rectification of the output of no-load 300V DC

Each 8-turn motor output increases the voltage of 1 volt, the faster the higher the voltage, the main high-voltage power generation or low-voltage low-power power generation.

Power generation: 40W
